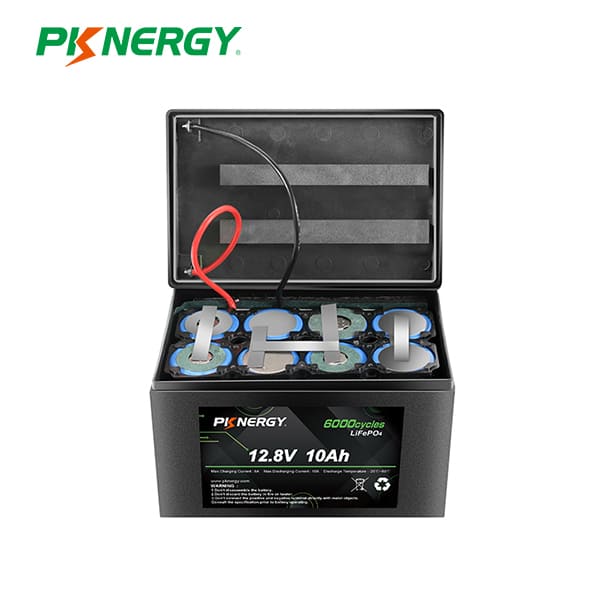

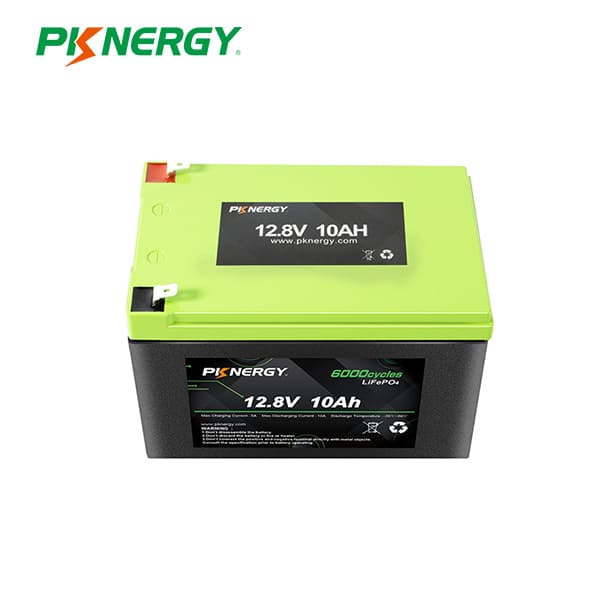

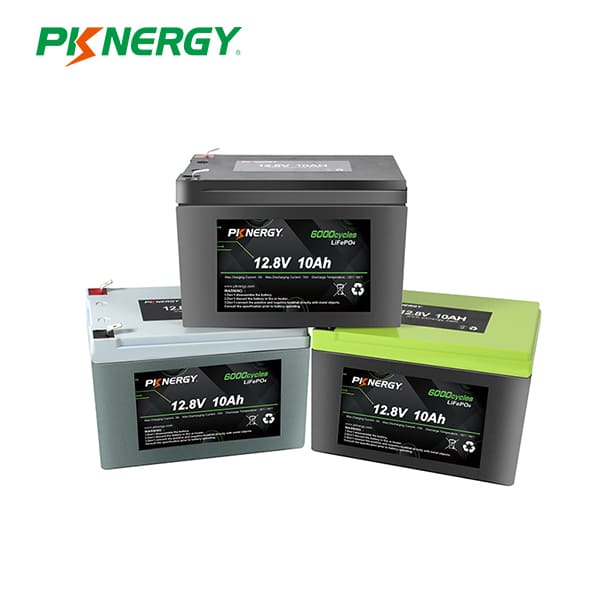

PKNERGY 12.8V 10Ah LiFePo4 Replacing Lead Acid Battery
PKNERGY Lithium Iron Phosphate ( LiFePO4 ) batteries are developed to deliver high efficiency energy output compared to equivalent lead acid batteries. They are able to accept continuous high rate charging amps which make the battery fully charged in short time and improve the load service efficiency significantly. The built-in advanced BMS ensures intelligent automatic protection against over voltage, over current, over discharge, over temperature.
Features:
A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
B. Long life-cycle: Can be circularly used, best can up to 6000 times recycles , 8 times of Lead acid battery.
C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
D. Good performance at high temperature and high temperature resistance
E. Low self-discharge rate, less than 3% monthly.
F. No memory effects and highly efficient charge.
G. Environment friendly: Clean and Green energy poses no pollution on our environment.
Specification
|
Electrical Character istics |
Nominal Voltage | 12.8V |
| Nominal Capacity | 10Ah@0.2C | |
| Energy | 128Wh | |
| Internal Resistance | ≤45mΩ | |
| Cycle Life | 6000 Cycles @ 2A Charging/Discharging ,Until 80% Capacity | |
| Charge retention and capacityRecovery capability | ≤3.5% per month at 25℃ | |
| Standard Charging | Max.Charging Voltage | 14.0~14.4V |
| Charging Mode | At 0℃~45℃ temperature, charged to 14.4V at a constantcurrent of 2A, and then,changed continuously with constant voltage of 14.4V until the current was not more than 0.2A | |
| Charging Current | 2A | |
| Max.Charging Current | 5A | |
| Standard Discharging | Discharging Current | 2A |
| Max. Continuous Current | 10A | |
| Max.Pulse Current | 20A(<3S) | |
| Discharging Cut-off Voltage | 10.0V | |
| Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP55 | |
| Casing | Plastic | |
| Dimension(L*W*H) | 151*99*99mm | |
| Weight | Approx：1.28Kg | |
| Terminal | F2 |
Discharge performance graph
Safe Characteristic
| No. |
Item |
Testing Instruction | Requirement |
| 1 | Over- charge test | Charge in accordance with the following two ways ( Choosing one between the two). (1 ) Charge at 1 Ccurrent for 9 0 min or until voltage of some single battery reaches 5 . 0 V ( stop test when fulfills eithercondition). ( 2 ) Charge at 3 C current until the voltage of some single battery reaches 10 . 0 V, then stop the test. | The battery shall not explode or catch fire |
| 2 | Over- discharge test | Charge the battery. Place at 20±5℃ for 1h, then discharge in 1 / 3 C current at same emperature until some cell’ s voltage is 0 V | The battery shall not explode orcatch fire |
| 3 | Short- ircuiting Test |
After charge batteries, place at 20 ± 5 ℃ for 1 h. Short the battery for 1 0 min, the external circuit resistance should be less than 5 mΩ. |
The battery shall not explode or catch fire |
