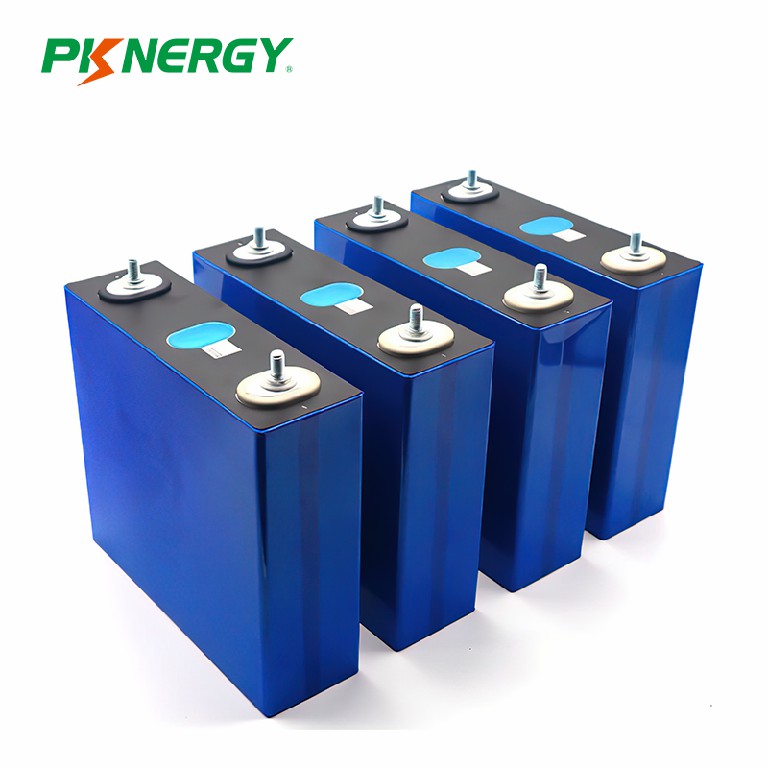

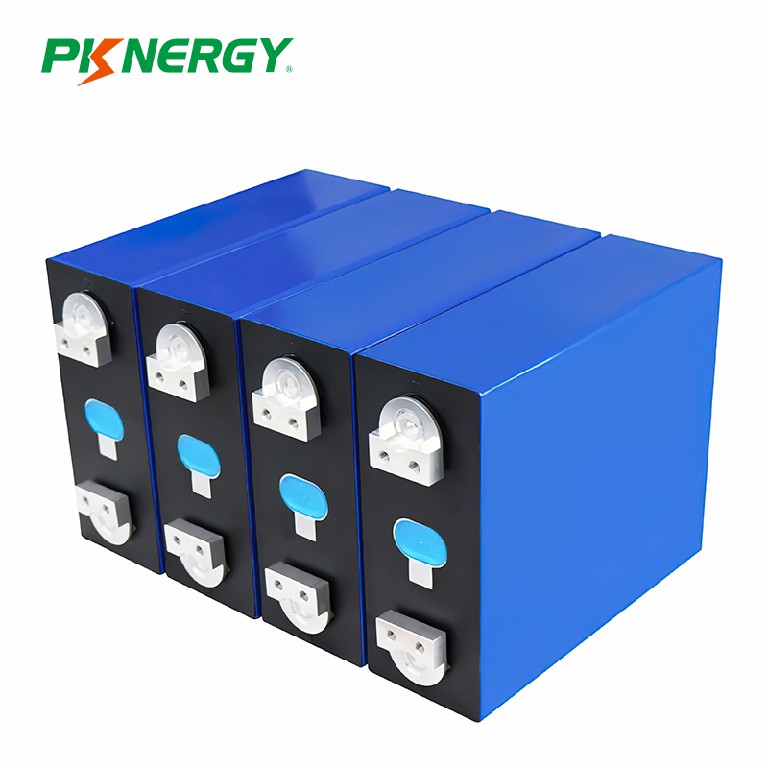

3.2V 150AH LIFEPO4 BATTERY CELL
Product Detail
Product Tags
PRODUCT SPECIFICATIONS:
ELECTRICAL SPECIFICATIONS
| VOLTAGE: |
3.2V |
| NOMINAL CAPACITY: |
150Ah |
| NOMINAL ENERGY: |
480Wh |
| CYCLE LIFE: |
≥4000 times |
MECHANICAL SPECIFICATIONS
| DIMENSION(LXWXH): |
33*200*207mm |
| WEIGHT: |
3.2Kg |
| CELL TYPE/CHEMISTRY: |
Cylindrical LiFePO4 |
| TERMINALS: |
standard Screw terminals |
CHARGE&DISCHARGE SPECIFICATIONS
| CHARGE METHOD: |
CCCV |
| CHARGE VOLTAGE: |
2.5-3.65V |
| MAX. CHARGE CURRENT: |
150A |
| END OF DISCHARGE VOLTAGE: |
2.5V |
| DISCHARGE CURRENT CONTINUOUS: |
150A |
TEMPERATURE SPECIFICATIONS
| CHARGE TEMPERATURE: |
0℃~45℃ |
| DISCHARGE TEMPERATURE: |
-20℃~60℃ |
| STORAGE TEMPERATURE: |
15～+35℃ |
COMPLIANCE SPECIFICATIONS:
| CERTIFICATION: |
RoHs, CE |
| SHIPPING METHOD: |
Expressage, by Sea, by Railway, by Air |
COMPLIANCE SPECIFICATIONS:
| THE BATTERY CAN BE IN SERIES IN 4 OR IN PARALLEL IN 4, BUT NOT AT THE SAME TIME. |
