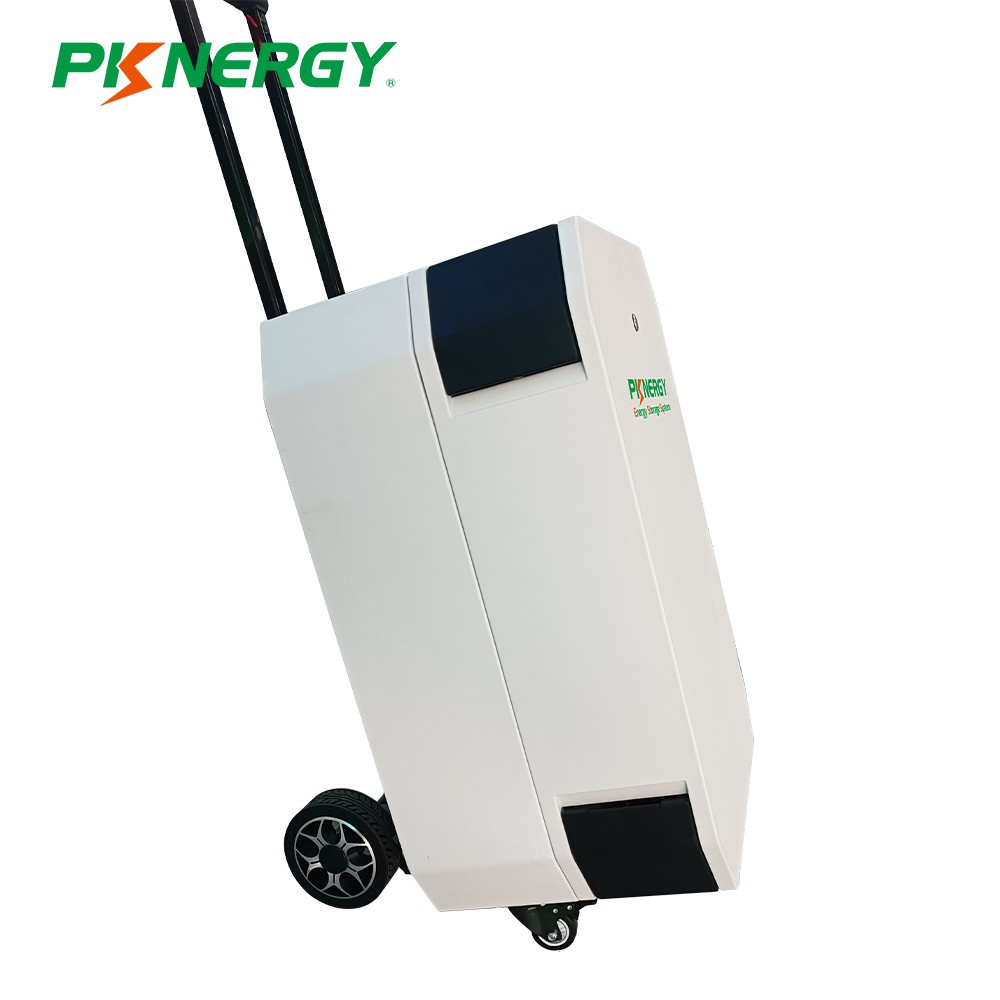

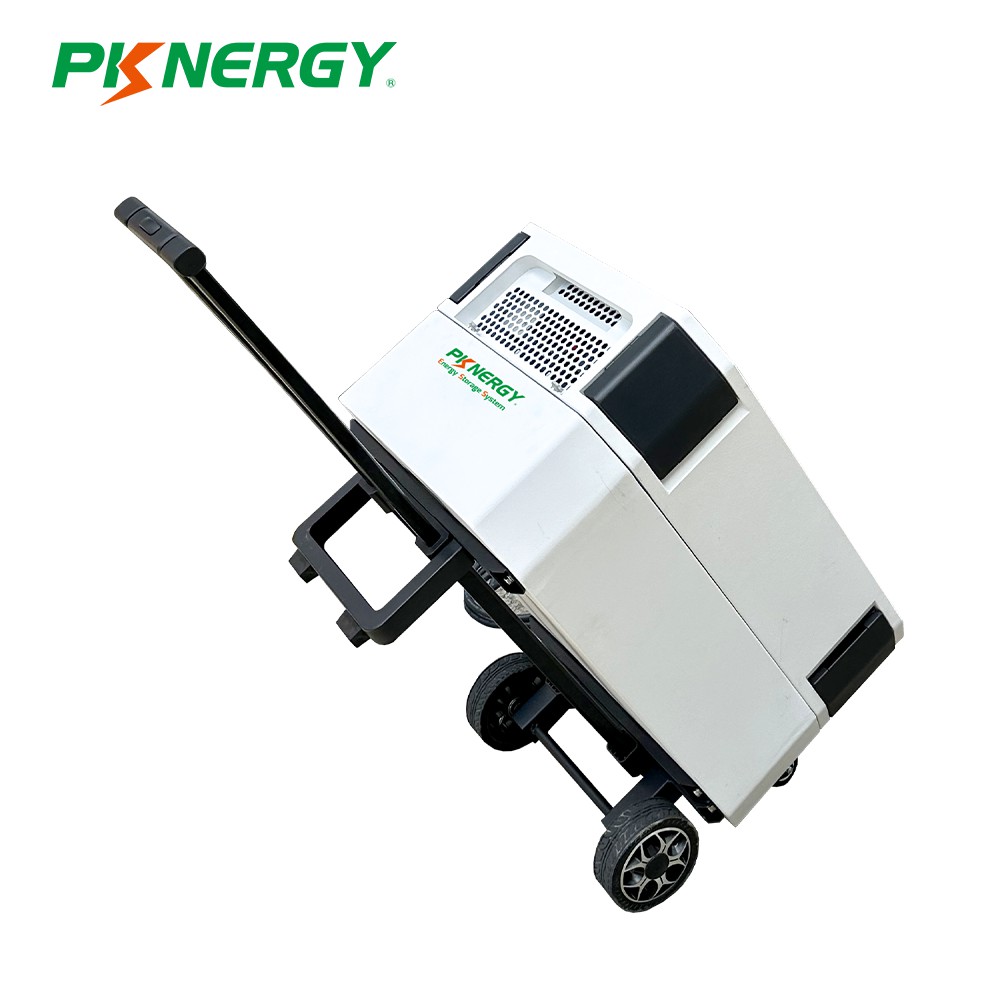

PKNERGY 5Kwh-30Kwh Portable Solar Battery with Strong Wheels for Outdoor & Household
The quick-release design includes an energy storage battery and an inverter system, making it very easy to transport. It can be connected to battery power, photovoltaic power and mains power to power it, and store the power generated by photovoltaic solar energy. It can be used for emergency charging of electric vehicles, outdoor camping, or as a standby power source for home alone, and the capacity can be increased to 30kwh.
Features
1. Hot and cold heat vents, environmentally friendly and silent, efficient heat dissipation.
2.Can be stacked separately and is suitable for home backup power.
3. Support 1-16 groups of battery systems in parallel.

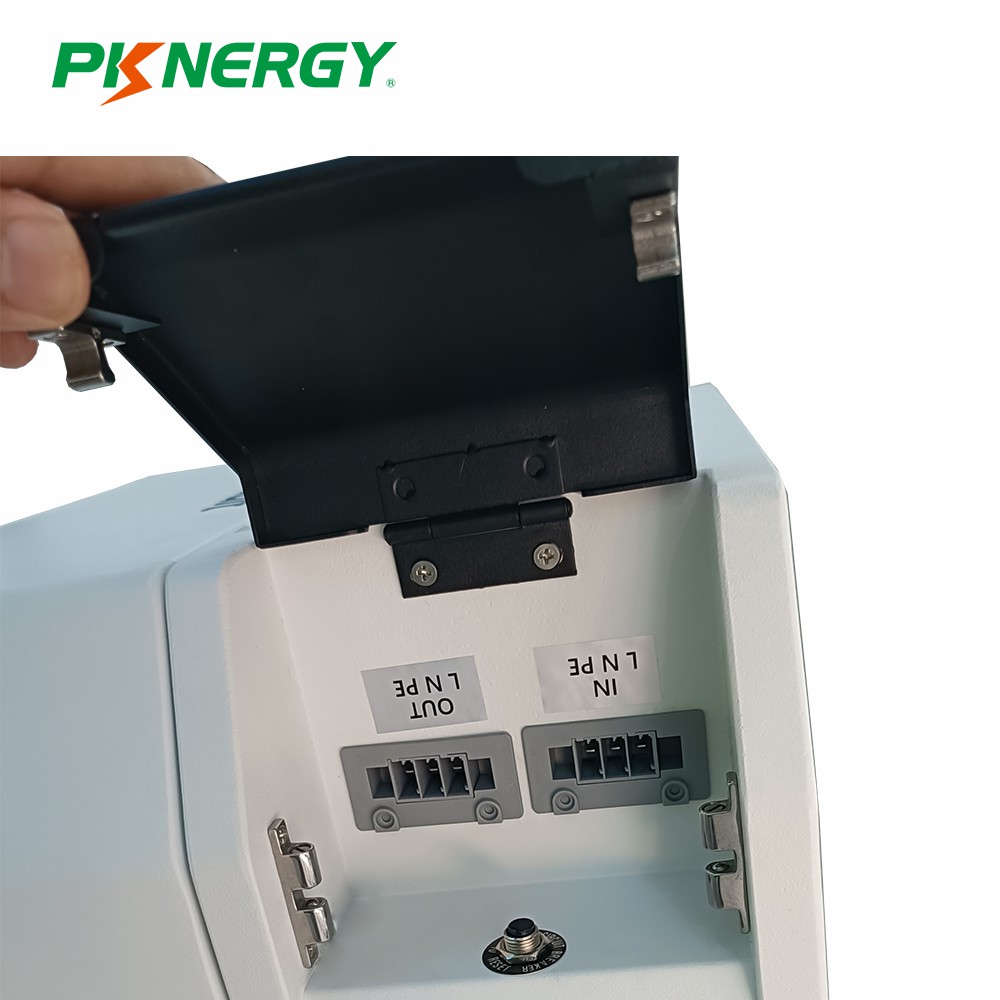

4. Photovoltaic and mains power input, more flexible power consumption.
5. It adopts automotive-grade UL authoritative certification cells, which has a longer durability and service life.
6. Modular design, can be matched with multi-brand common PCS, to meet the needs of home energy applications
Battery Pack specifications
Technical parameters of the battery pack | |
Connection | 1P16S |
Rated capacity | 100Ah |
Rated energy | 5.12kWh |
Rated voltage | 51.2V DC |
Charge cut-off voltage | 57.6V or 3.6V/cell |
Discharge cut-off voltage | 43.2V or 2.7V/cell |
Resistance | ≤60mΩ |
Standard charging | 50A |
Standard discharge | 100A |
Operating temperature range | Charge:0~55℃ Discharge: -20~60℃ |
Storage temperature range | -20℃~50℃ |
Weight | 46.7±3kg |
Size | 635*420*160 |
Ingress protection | IP54 |
Inverter parameters | |
Inverter power | 5000W |
Rated energy | 5.12KWh |
AC input voltage | 220V(50-60Hz) |
AC output voltage | 220V(50-60Hz) |
PV input data | |
MPPT voltage range(V) | 120-430V |
Number of MPPT | 1 |
General parameters | |
Operating Temperature Range (°C) | -20~60℃, >45℃ Power Reduction |
Installation | stack |
Output overcurrent protection | integration |
Output overvoltage protection | integration |
Photovoltaic input lightning protection | integration |
Storage temperature range | -20℃~50℃ (Recommended storage humidity range of ≤90%RH) |
Product dimensions(W*D*Hmm) | 721*420*477 |
Weight | 73±3kg |
Ingress protection | IP20 |
Package dimensions/Weight | Battery pack + base:780*480*390mm/54.6Kg; |
Inverter:700*480*230mm/19Kg; | |
Number of 20' containers | 99 |
Number of 40' containers | 198 |
