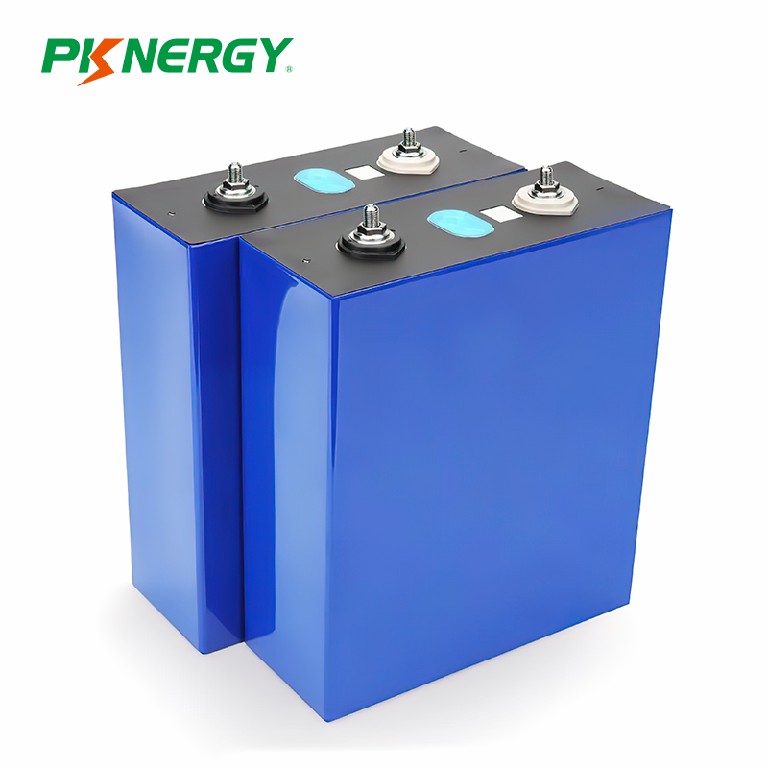

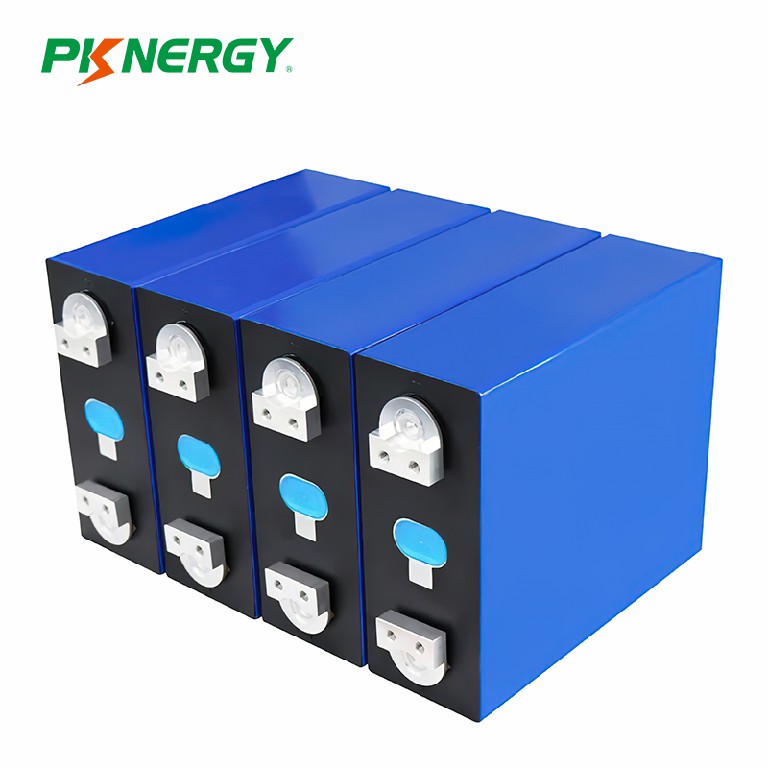

PKNERGY High Capacity 3.2V 300Ah 302Ah 304Ah Lifepo4 Battery Cell

Short Description:

Extrema light weight, Extended cycle life,Low Self Discharge, Superior Cranking Power,Completely Sealed and Environmental lifepo4 battery, especially developed for Large-scale electric vehicles, Light electric vehicles, Electric ship,Golf cart, Power tools,solar equipment and so on. The price of this battery come with Bus bars and Bolts, one battery will come with one set bus bar and bolt (e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts); the busbars size: 90*20*2mm; Screw size: M6*10mm; Hole distance: 70mm(cooper plated with nickel), we also can customize the size by your demand and we can provide battery pack assemble service.


Product Detail

Product Tags

ELECTRICAL SPECIFICATIONS
VOLTAGE: 3.2V
NOMINAL CAPACITY: 302Ah
NOMINAL ENERGY: 966.4Wh
CYCLE LIFE: ≥4000 times

MECHANICAL SPECIFICATIONS

DIMENSION(LXWXH): 72*174*205mm
WEIGHT: 5.3Kg
CELL TYPE/CHEMISTRY: Prismatic LiFePO4
TERMINALS: standard Screw terminals

CHARGE&DISCHARGE SPECIFICATIONS

CHARGE METHOD: CCCV
CHARGE VOLTAGE: 2.5-3.65V
MAX. CHARGE CURRENT: 302A
END OF DISCHARGE VOLTAGE: 2.5V
DISCHARGE CURRENT CONTINUOUS: 302A

TEMPERATURE SPECIFICATIONS

CHARGE TEMPERATURE: 0℃~45℃
DISCHARGE TEMPERATURE: -20℃~60℃
STORAGE TEMPERATURE: 15~+35℃

COMPLIANCE SPECIFICATIONS:

CERTIFICATION: RoHs, CE
SHIPPING METHOD: Expressage, by Sea, by Railway, by Air

COMPLIANCE SPECIFICATIONS:

THE BATTERY CAN BE IN SERIES IN 4 OR IN PARALLEL IN 4, BUT NOT AT THE SAME TIME.
