PKNERGY Customized Li-polymer Battery
Li-polymer 3.7V Rechargeable Battery
Lithium Polymer batteries are widely used in many different fields. The future development trend is that Lithium Polymer batteries will replace the ni-mh, ni-cd batteries, lead-acid batteries. We are professional lithium Polymer battery manufacturer, and we can provide customer power solutions.
Key Features:
1. High Operating Voltage (3.7V)
2. High energy density
3.Wide operating temperature range: Charge at 0～45℃ Discharge at –20～60℃
4. Designed for a safe operation, all batteries are equipped with multiple safety features, including a safe shut-down separator and a safety vent
5. High-output and high-load characteristics; Max Continuous discharge rate is at 1.5C
6. Low self-discharge rate: under 3% self-discharge for one year
7. long cycle life over 500 times
8. No memory effects
9. Comply with IEC62133 CB CE safety standard
10.Safe to ship : MSDS, UN38.3 cert. available
Application:
GPS, GSM modem, Bluetooth Keyboard, Auto electronics, Toys, Barcode scanner,Tax Machine, Portable device, Light, Tracking system, Cash Machine, POS Terminal, Mine Equipment ,Alarms and security systems, Power bank, E-cigarette, Medical device, Electric bike, Electric scooter,etc
Customized Design:
Customized design battery pack is available, below Cell model list is only for reference, CONTACT US for detailed information and customized solutions.
Recommended Li-Polymer 3.7V battery Model List
| Model | Nominal Voltage(V) | Battery Cell Size | Capacity(mAh) | Discharge Performance | ||
| Thickness(mm) | Width(mm) | Length(mm) | ||||
| 401230 | 3.7 | 4 | 12 | 30 | 105 | 0.5C-1C |
| 401235 | 3.7 | 4 | 12 | 35 | 100 | 0.5C-1C |
| 551730 | 3.7 | 5.5 | 17 | 30 | 250 | 0.5C-1C |
| 801735 | 3.7 | 8 | 17 | 35 | 400 | 0.5C-1C |
| 801740 | 3.7 | 8 | 17 | 40 | 500 | 0.5C-1C |
| 402025 | 3.7 | 4 | 20 | 25 | 150 | 0.5C-1C |
| 902030 | 3.7 | 9 | 20 | 30 | 500 | 0.5C-1C |
| 603030 | 3.7 | 6 | 30 | 30 | 500 | 0.5C-1C |
| 402035 | 3.7 | 4 | 20 | 35 | 230 | 0.5C-1C |
| 552035 | 3.7 | 5.5 | 20 | 35 | 350 | 0.5C-1C |
| 503035 | 3.7 | 5 | 30 | 35 | 500 | 0.5C-1C |
| 402535 | 3.7 | 4 | 25 | 35 | 330 | 0.5C-1C |
| 402040 | 3.7 | 4 | 20 | 40 | 280 | 0.5C-1C |
| 503040 | 3.7 | 5 | 30 | 40 | 560 | 0.5C-1C |

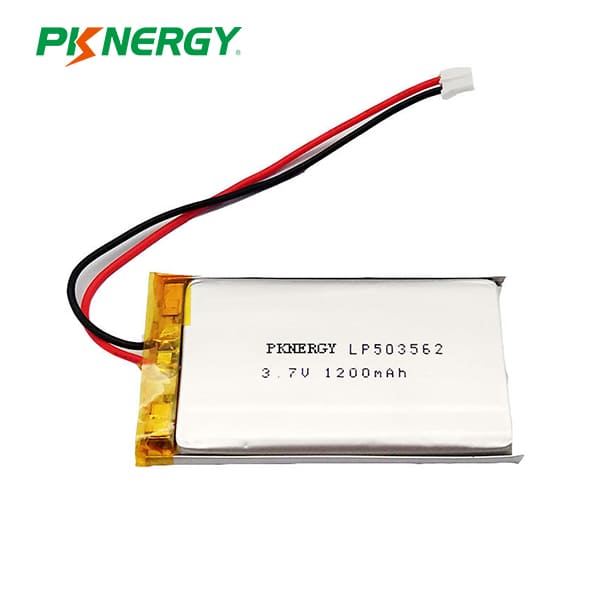

| 503562 | 3.7 | 5 | 35 | 62 | 1200 | 0.5C-1C |
| 803475 | 3.7 | 8 | 34 | 75 | 2200 | 0.5C-1C |
| 674360 | 3.7 | 6.7 | 43 | 60 | 1950 | 0.5C-1C |
| 803040 | 3.7 | 8 | 30 | 40 | 1000 | 0.5C-1C |
| 523450 | 3.7 | 5.2 | 34 | 50 | 950 | 0.5C-1C |
| 603450 | 3.7 | 6 | 34 | 50 | 1100 | 0.5C-1C |
| 803450 | 3.7 | 6 | 34 | 50 | 1100 | 0.5C-1C |
| 103450 | 3.7 | 10 | 34 | 50 | 2000 | 0.5C-1C |
| 103450 | 3.7 | 10 | 34 | 50 | 1800 | 0.5C-1C |
| 103448 | 3.7 | 10 | 34 | 48 | 1500 | 0.5C-1C |
| 903759 | 3.7 | 9 | 37 | 59 | 2200 | 0.5C-1C |
| 803860 | 3.7 | 8 | 38 | 60 | 2000 | 0.5C-1C |
| 654860 | 3.7 | 6.5 | 48 | 60 | 2000 | 0.5C-1C |
| 785060 | 3.7 | 7.8 | 50 | 60 | 2500 | 0.5C-1C |
PKNERGY Custom Battery
PKNERGY focus on helping our customers design the best custom battery pack products that are the most cost effective, environmentally safe and exceed all of their specifications. Our offering of batteries and custom battery packs allows us to work with our customers and their engineering teams to manage the power needs of their end products. Our goal is to exceed your specifications while keeping you under budget.
 |
ExperiencePknergy is a battery manufacturer with 20 years of battery production experience in China, we are committed to providing high-quality various batteries to the world. We have more than 200 employees in China and battery factories with a total area of more than 10,000 square meters spread across various locations. The batteries produced are widely recognized in China and other regions! |
Wide range of productsPknergy provides lithium ion battery, lithium polymer battery and lifepo4 battery production, you can customize the battery or battery pack that best suits you here. |
 |
 |
Efficient servicePknergy have more than twenty professional battery designers, and we promise to provide you with the most professional battery solution within 1 day!
|
Serial productionPknergy has 18 high-speed production lines and humanized and efficient team arrangements, and each customized battery project has a one-to-one project manager with rich experience. With these resources combined, you can get your battery sample within 1 week! |
 |
 |
High speed logisticsPknergy cooperates with more than 20 logistics companies to transport goods to any country in the world. And our company is located in Shenzhen, one of the largest ports in China. We will choose the most suitable logistics in the fastest time to help your business take off! |
Quality AssuranceAll Pknergy products are strictly inspected and quality controlled by project managers. At the same time, we are equipped with complete after-sales service. The shelf life is up to 10 years, giving you no worries about your battery. |
 |
Didn’t find the battery you need? Please send us your requirements, Pknergy can produce any model of battery! Get custom batteries for your project production!
