PKNERGY 25.6V 200Ah LiFePo4 Battery Pack
Reliable and Long-Lasting Energy Storage Solution
The PKNERGY 25.6v 200ah Lifepo4 Battery is the perfect choice for a reliable and long-lasting energy storage solution for your home and small and medium enterprises (SMEs). The battery’s ultra-modern design, with a highly qualified research and development team, ensures extreme reliability and an ultra-long service life.
Key Features of the PKNERGY 25.6V Solar Battery
The PKNERGY 25.6v 200ah Lifepo4 Battery features an extremely safe and stable chemistry, with PCB and/or BMS built inside to balance and protect the battery. Which really catch the eye as a flexible and effective option. They bring perks like high energy density, a long cycle life, and not needing much upkeep. It offers a long life-cycle and can be circularly used up to 6000 times, which is eight times more than a lead-acid battery. Moreover, the battery is lighter, with the best power-to-weight ratio of 1/3 of a lead-acid battery’s weight. The battery also offers good performance at high temperatures and has high temperature resistance. With a low self-discharge rate of less than 3% monthly, the battery has no memory effects and highly efficient charge. The environmentally friendly battery is clean and green energy, posing no pollution on our environment. These features make them best batteries for solar off-grid setups, guaranteeing a fulfilling and independent energy journey.
Performance And Test Conditions of the PKNERGY 25.6V Solar Battery
Using the technology of lithium iron phosphate cell, the PKNERGY 12v 100ah Lifepo4 Battery offers superior safety, thousands of cycles, 100%DOD, under normal conditions. It has built-in automatic protection for over-charge, over-discharge, over-current, and over-temperature and is free of maintenance. The battery features internal cell balancing and is of a lighter weight, about 40%~50% of the weight of a comparable lead-acid battery. It is a replacement for a lead-acid battery and has a wider temperature range of -20℃~60℃. It supports series application expansion (up to 25.6V) or two in parallel.
Specification
|
Electrical Characteristics |
Nominal Voltage | 25.6V |
| Nominal Capacity | 200Ah@0.5C | |
| Energy | 5120Wh | |
| Internal Resistance | ≤100mΩ | |
| Cycle Life | 6000 Cycles @ 0.2C 60%DOD | |
| Charge retention and capacity
Recovery capability |
Standard charge the battery, and then put aside at room temperature for 28 d or 55 ℃ for 7d, Charge
retention rate ≥ 90%, Recovery rate of charge≥ 90 |
|
|
Standard Charging |
Max.Charging Voltage | 28.4-29.2V |
| Charging Mode | 0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) | |
| Charging Current | 40A | |
| Max.Charging Current | 100A | |
|
Standard Discharging |
Discharging Current | 40A |
| Max. Continuous Current | 100A | |
| Discharging Cut-off
Voltage |
20.0V | |
|
Operating Condition |
Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP65 | |
| Casing | Plastic | |

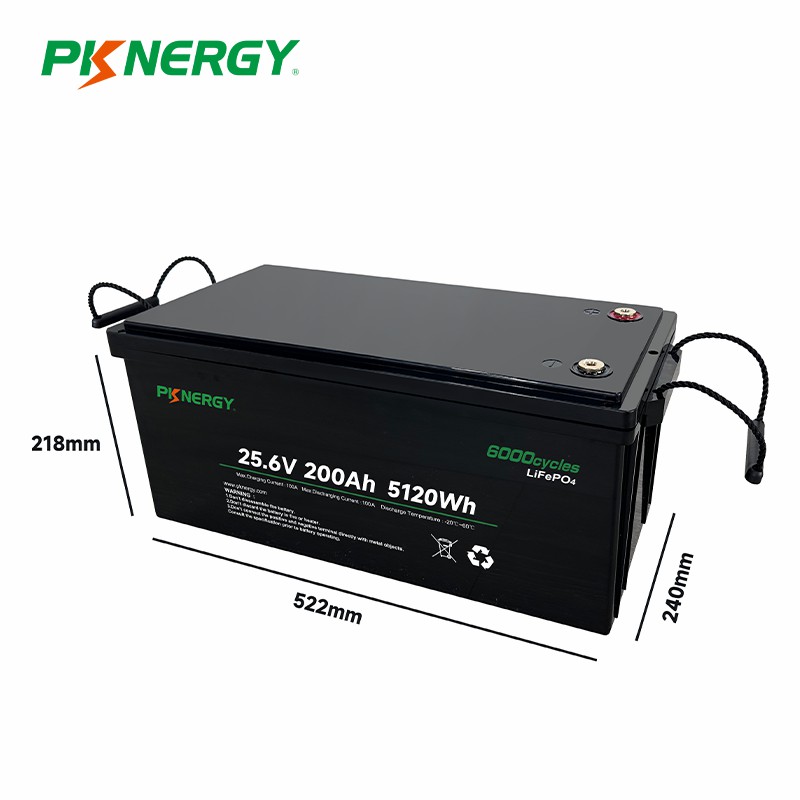

| Dimension(L*W*H) | 522*240*218mm | |
| Weight | Approx：40.0Kg | |
| Terminal | M8 |
Application of the Pknergy 25.6V Solar Battery
The PKNERGY 25.6v 200ah Lifepo4 Battery is suitable for various applications, including UPS, solar and wind power systems, golf carts, electric vehicles, e-bikes, e-rickshaws, and lighting.
The best solution for Solar Battery
Investing in the PKNERGY 25.6v 200ah Lifepo4 Battery is a wise decision for businesses and individuals looking for a reliable, durable, and energy-efficient solution. The battery’s long lifespan and advanced Battery Management System (BMS) technology make it ideal for any solar off-grid system, small and medium enterprises (SMEs), or home energy storage applications.
Discharge performance graph
Characteristic
| No. |
Item |
Testing Instruction | Requirement |
| 1 | Over- charge test | Charge in accordance with the following two ways ( Choosing one between the two). (1 ) Charge at 1 Ccurrent for 9 0 min or until voltage of some single battery reaches 5 . 0 V ( stop test when fulfills eithercondition). ( 2 ) Charge at 3 C current until the voltage of some single battery reaches 10 . 0 V, then stop the test. | The battery shall not explode or catch fire |
| 2 | Over- discharge test | Charge the battery. Place at 20±5℃ for 1h, then discharge in 1 / 3 C current at same emperature until some cell’ s voltage is 0 V | The battery shall not explode orcatch fire |
| 3 | Short- ircuiting Test |
After charge batteries, place at 20 ± 5 ℃ for 1 h. Short the battery for 1 0 min, the external circuit resistance should be less than 5 mΩ.
