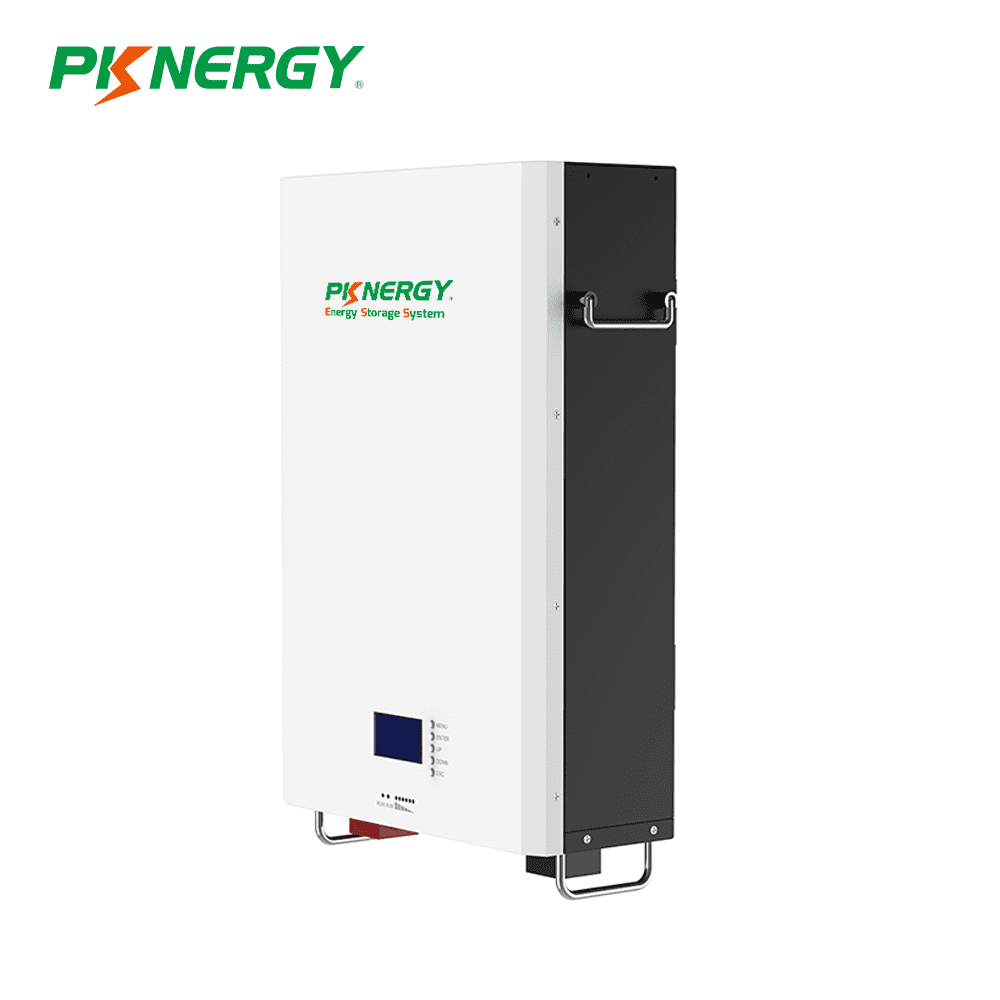

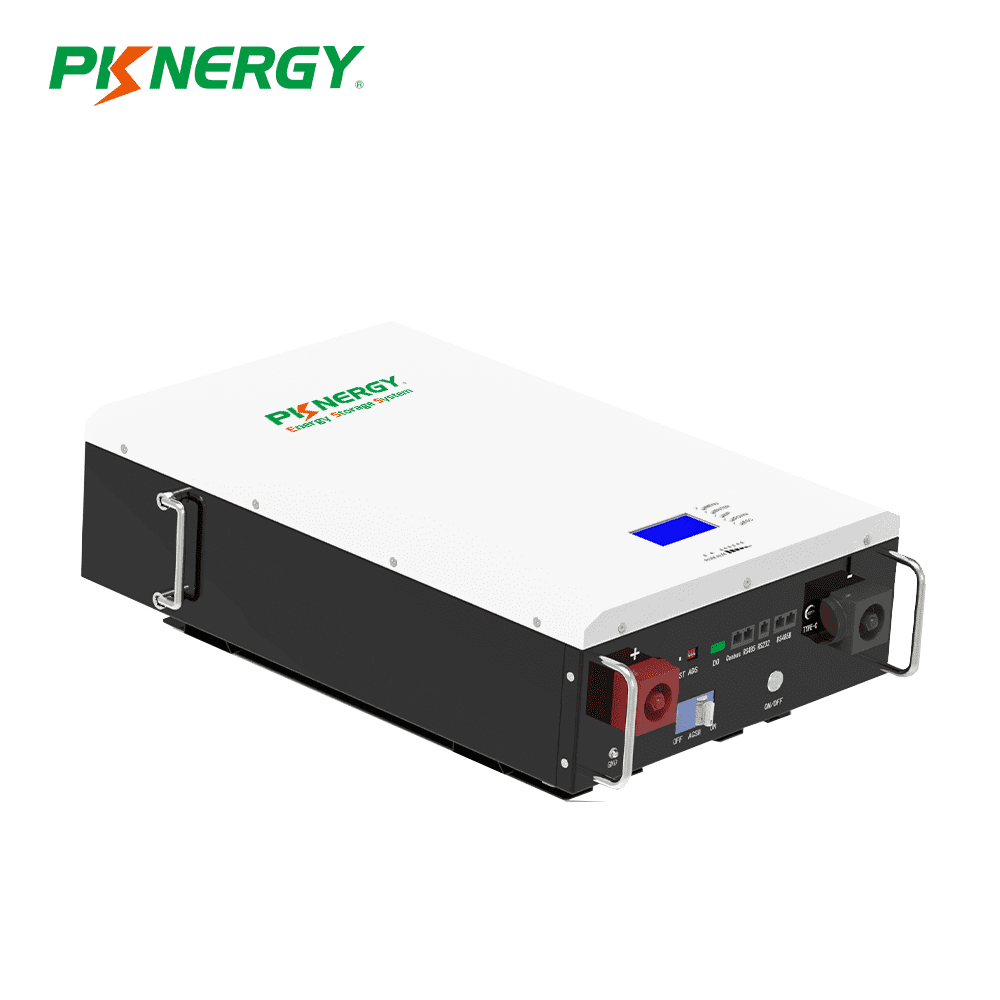

PKNERGY 51.2V 100Ah 5Kwh Powerwall Battery for Home Energy Storage

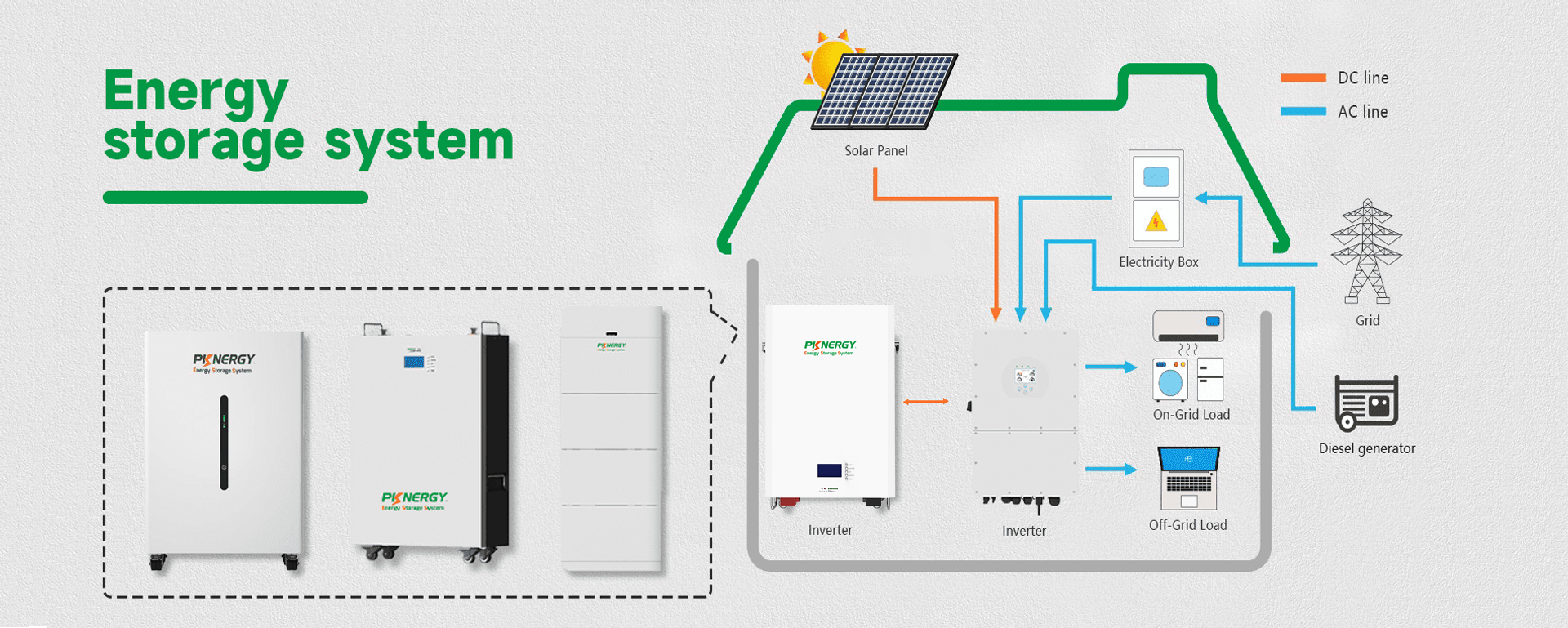

51.2V 100Ah 5Kwh Wall-Mount LiFePO4 Battery with Roller is pack designed as an Energy storage system ess battery module. It can be used in series or in parallel. It is compatible with all industry-leading standard solar charge controllers, inverters.
Superior chemical and thermal stability, Lithium Iron Phosphate battery pack is the safest in the lithium-ion family. It includes Canbus, RS485 communication， Modules can be connected in parallel, and paralleled modules that communicate through RS485. Battery modules communicate with the inverter via the CAN interface. Compatible with CANBUS protocol, compatible with Growatt, Goodwe, Deye inverter.Supports parallel, Best for energy storage, and more extended cycle life Module Applications. This 5kwh energy storage system battery is easy to install and keep in parallel households, small industrial businesses, tiny houses, and homes.

Features

- 48v LFP-based ESS, long life expectancy of 10+ years.

- Battery bank Expandable in parallel as power needs to increase.

- Operates at 90% efficiency for more than 7000 times cycles.

- Offer up to 100% depth of discharge.

- integrated battery management system ( BMS ).

- Flexible control that covers all commercial fields.

- Quick and Easy Installation, Maintenance-free.

Battery Pack specifications

Model	PKNERGY-5000W	PKNERGY-7000W	PKNERGY-10000W
Nominal Voltage	51.2V(16series)
Capacity	100Ah	150Ah	200Ah
Energy	5120Wh	7680Wh	10240Wh
Internal  Resistance	≤30mΩ
Cycle Life	≥7000 cycles @ 90% DOD, 25℃, 0.5C
Design Life	≥10 years
Charge Cut-off Voltage	56.0V±0.5V
Max. Continuous Work Current	100A/150A(Can  choose)
Discharge Cut-off Voltage	45V±0.2V
Charge Temperature	0℃~60℃ (Under 0℃ extra heating mechanism)
Discharge   Temperature	-20℃~60℃ (Under 0℃work with reduced capacity)
Storage Temperature	-40℃~55℃ @ 60%±25% relative humidity
Dimensions	680 x485 x180(220)mm
Weight	Approx: 62kg	Approx: 79kg		Approx: 98kg
	RS232-PC,RS485(B)-PC
Protocol   (optional)	RS485(A)-Inverter,Canbus-Inverter
Certification	UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)

Dimension

Unit（mm）
L（length）	680	W（width）	485	H（thickness）	180
L（Exposed wire length）	/	WIRE（Leader）	/	Terminal model	8mm（Quick plug）
remarks	Output line：Wire diameter 35mm2，length 2m
