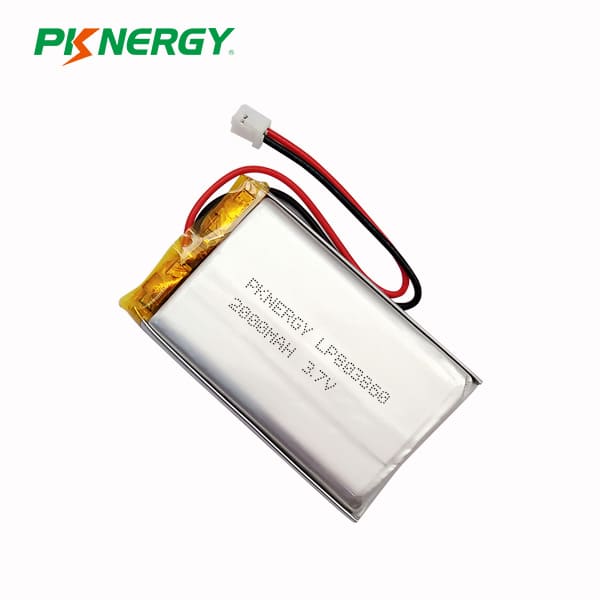

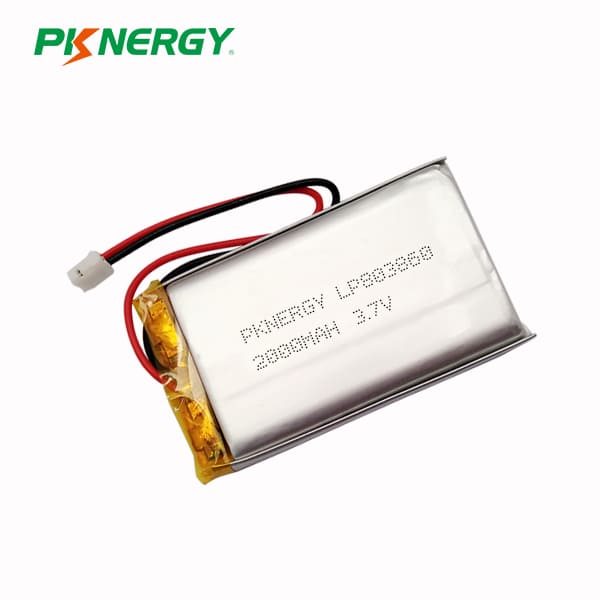

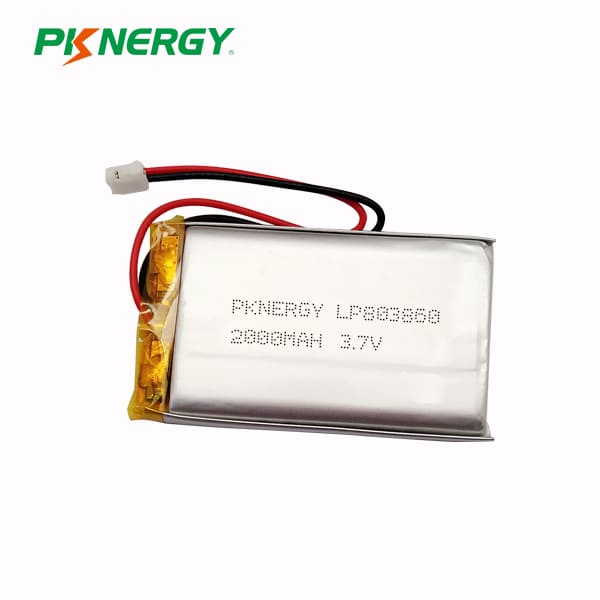

PKNERGY Li-Polymer 803860 2000mAh 3.7V with PCM
Lithium-ion polymer (also known as ‘lipo’ or ‘lipoly’) batteries are thin, light, and powerful. The output ranges from 4.2V when completely charged to 3.0V. This battery has a capacity of 2000mAh for a total of about 7.4Wh. Li-Po Battery Pack which is collection of individual LiPo cells that are connected together to provide a higher voltage, capacity. We have Li-Po Battery Pack customized service. If you need a larger battery, we also have a 2000mAh+ model.
Features
1.Intelligent Battery Pack Design
2.Environmental Friendly Chemistry,Pollution-free;non-polluting
3.High Energy Density,High Power Density
4.No fire, No explosion, No leakage
5.Wholly closed dust-free workshops,securing high quality
6.Excellent Cycle Life,chargeable up to 500 or 1000 times
Specification
|
No |
Item |
Rated performance |
Remark |
|
1 |
Capacity | Nominal 2000mAh Minimum 1900mAh | Standard discharge after standard charge |
|
2 |
Nominal voltage | 3.7V | Mean operation voltage during standard discharge after standard charge |
|
3 |
Voltage at end of discharge | 3.0V | Discharge cut-off voltage |
|
4 |
Charging voltage | 4.2V | |
|
5 |
Standard charge | Constant current 0.2C5A Constant voltage 4.2V Cut-off current 0.01C5A | |
|
6 |
Quick charge | Constant current 1C5A Constant voltage 4.2V Cut-off current 0.01C5A | |
|
7 |
Standard discharge | Constant current 0.2 C5A End voltage 3.0V | |
|
8 |
Maximum continuous discharge current | 1 C5A | |
|
9 |
Operation temperature range | Charge: 0~45℃ | 60±25%R.H |
| Discharge:-20~60℃ | |||
|
10 |
Cycle life | >300cycles | Charging/discharging in the below condition: Charge: standard chargeDischarge:0.2C5A to 3.0VRest time between charge/discharge:30min Until the discharge capacity <60% of NC |
| 11 | Storage temperature | During 1 month: -5 ~ 35℃ | 60±25%R.H |
| During 6 months: -20 ~ 45℃ |
Appearance
No scratches, dirt, defect, leakage of electrolyte or gassing should be observed as a new product.
Standard Testing Environment
Temperature : 25±2℃
Relative humidity : 65±20%（unless specially requested）
Packing
Pallet/PE bag/Customized Package
1. All shipping goods are 100% inspected and packed very well.
2. The images shown are for your reference Only.
Additional safety notes: Do not use a NiMH/NiCad/lead-acid charger! Also, do not abuse these batteries, do not short, bend, crush, or puncture. Never charge or use unattended. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits. Polarity matches all Adafruit LiPoly/LiIon chargers and boards, other brands may have reverse polarity and can destroy your battery. As with all Lithium-ion polymer batteries and with any power source – they should be used by experts who are comfortable working with power supplies.
