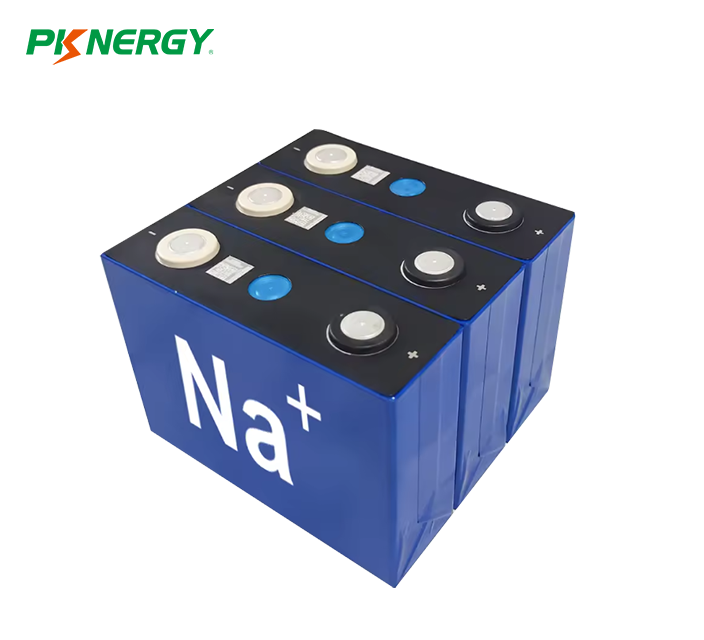

Sodium-ion Prismatic battery cell

Short Description:

Explore our sodium-ion batteries, offering long-lasting energy solutions that are eco-friendly and cost-effective, suitable for a wide range of applications.

Battery Type: Sodium-ion
Battery Capacity: 50Ah
Brand Name: PKNERGY
Model Number: NaCP50160118-70E3
Weight: 1.8kg
Operating Temperature[°C]: -40℃-60℃
Cycle Life : ≥2000 cycle
Discharge Rate: 3C
Charging Temperature: -20°C-55°C
Discharging Temperature: -40°C-60°C

SEND EMAIL TO US Download as PDF

Product Detail

Product Tags

Pknergy provides high-quality prismatic sodium-ion batteries. These batteries are the latest energy storage technology, providing new options for companies seeking battery solutions, we have a complete sodium-ion battery production plant in China, producing sodium-ion prismatic cells of various specifications. Provide reliable national solutions for different projects.

Features

1. Low cost
2. Pure green electricity
3. High rate
4. Wide temperature range
5. Long life
6. High safety

Sodium-ion Battery Specifications

Product Model	Rated Capacity	Energy Density	Voltage Range	Maximum Discharge Rate	Cycle Life	Technical Features	Application Field
NaCP39148102-50E3	50Ah	130Wh/kg	1.5-4V	6C	3000(0.5C@70%)	Capacity Type	Special Vehicles
NaCP50160118-70E3	70Ah	130Wh/kg	1.5-4V	6C	3500(0.5C@80%)	Capacity Type	Communication Base Stations & Backup Power
NaCP50160118-70H3	70Ah	130Wh/kg	1.5-4V	6C	3500(0.5C@80%)	Power Type	Special Vehicles
NaCP50160118-80E3	80Ah	145Wh/kg	1.5-4V	6C	3500(0.5C@80%)	Long Cycle Life & High Capacity	Communication Base Stations & Backup Power
NaCP40130208-80E3	80Ah	140Wh/kg	1.5-4V	6C	3500(0.5C@80%)	Long Cycle Life & High Capacity	Communication Base Stations & Backup Power
NaCP50160153-100E3	100Ah	150Wh/kg	1.5-4V	6C	3500(0.5C@80%)	Long Cycle Life & High Capacity	Communication Base Stations & Backup Power
NaCP71173208-160E3	160Ah	110Wh/kg	1.5-3.8V	6C	8000(0.5C@70%)	Long Cycle Life & High Capacity	Energy Storage

Battery Comparison Table

Feature	Sodium-ion Battery	Lithium-ion Battery	Nickel-Metal Hydride Battery	Lead-acid Battery
Raw Material Availability	Abundant and inexpensive	Limited and expensive	Moderate	Abundant
Cost	Low	High	Moderate	Low
Energy Density	Moderate	High	Low to Moderate	Low
Cycle Life	High	Moderate to High	Moderate	Low to Moderate
Safety	High	Moderate	High	Moderate
Temperature Performance	Excellent	Good	Moderate	Poor
Environmental Impact	Low	Moderate	High	High
